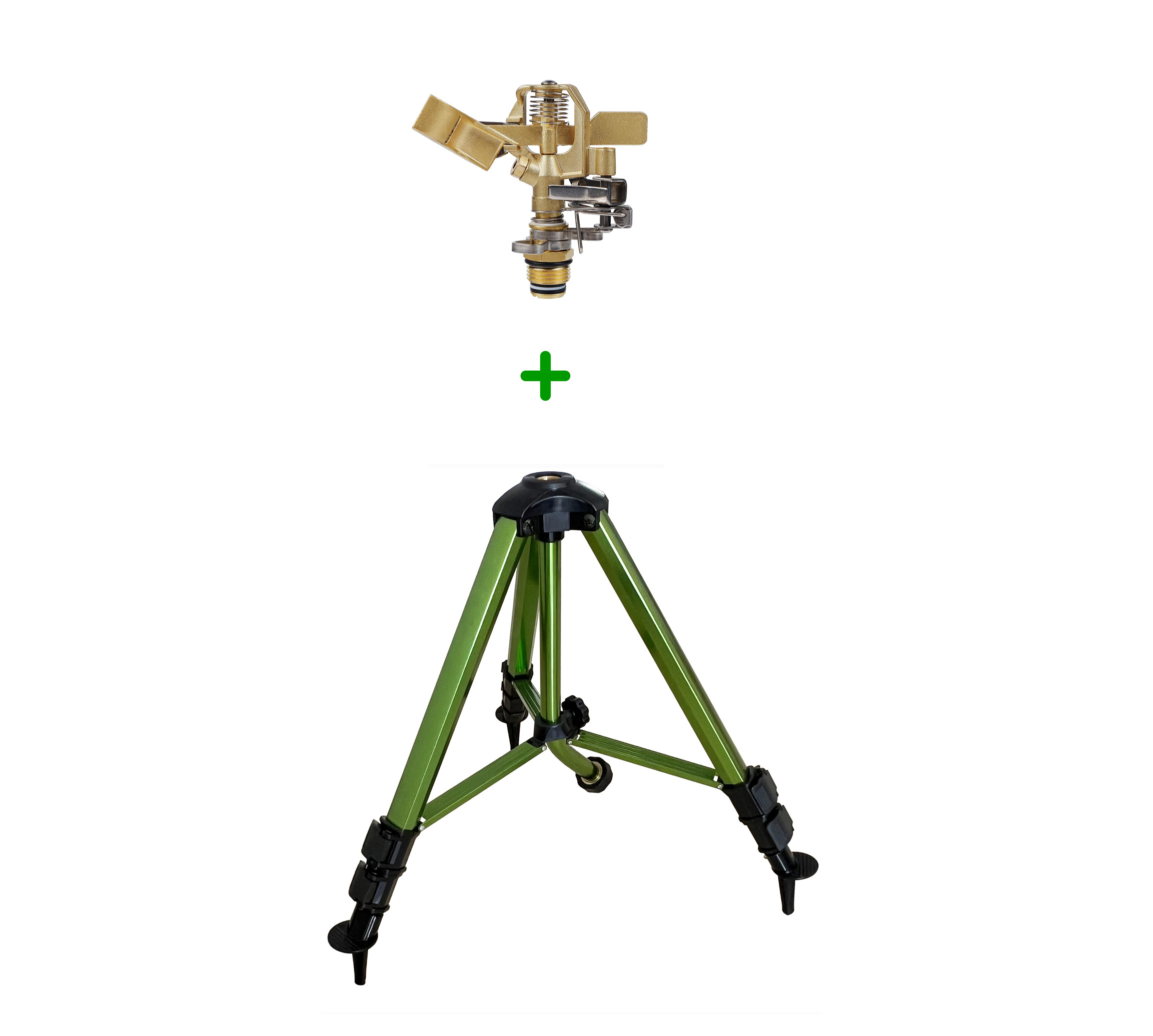

Impact Sprinkler Head on Tripod Base

Item.No: HX-3311 Trademark: HX Standard: ANSI Size: G 1/2" Material: Brass Structure: Pressure: 20-80psi Media: Water Temperature of Media: Normal Surface finish: picking treatment Package: Poly bag, Inner box, Hang tag, Tie, Blister or Customized MOQ: 1000 Time of delivery: 30 Days Term of payment: 30% T/T Deposit,and balance before shipment. Place of Origin: Taizhou, China

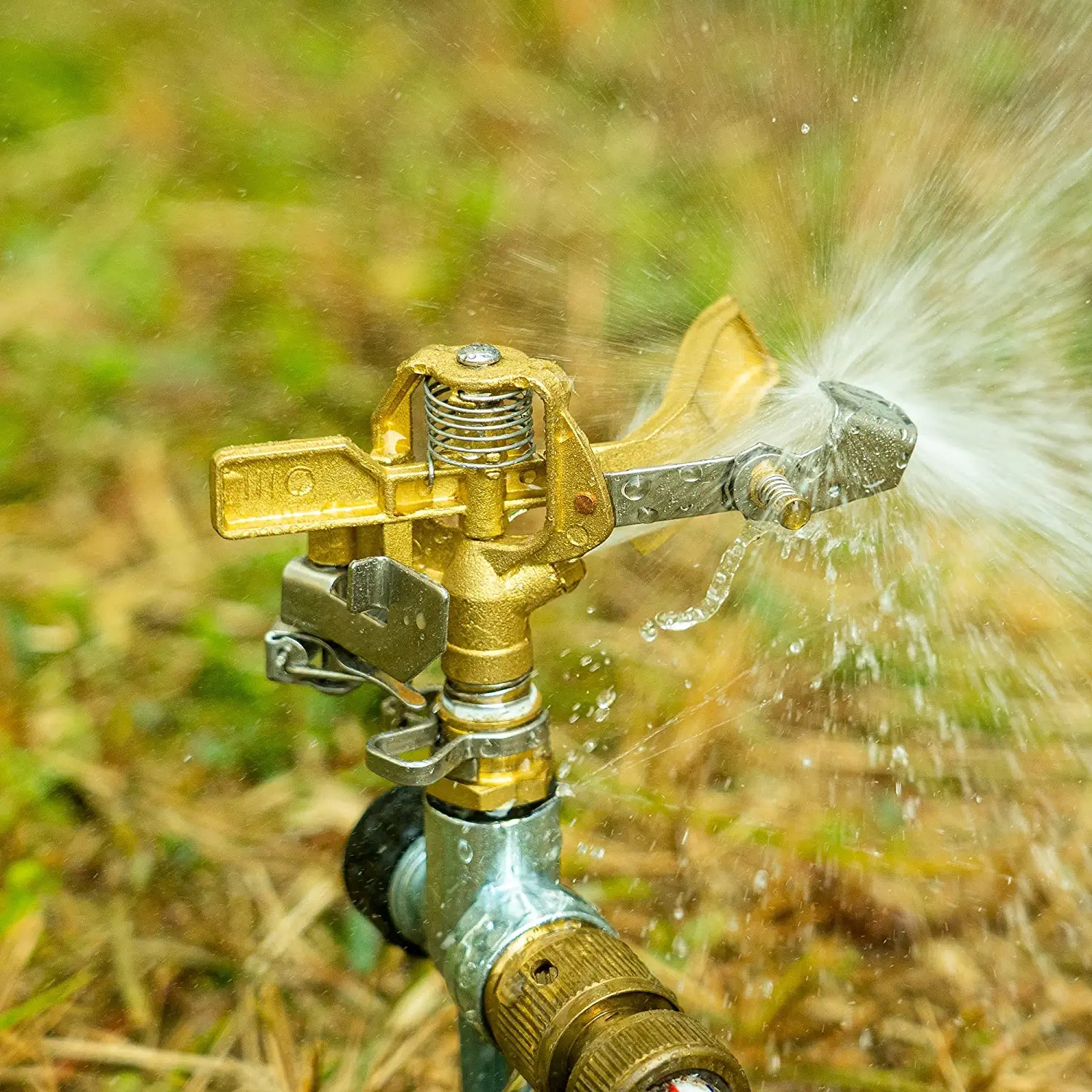

1/2" (13mm) Full or Part Circle, Brass Impact Sprinkler
Full or Part Circle operation
• Chemically resistant washers
• Durable brass die-cast, ‘precision jet’ arm
• Stainless steel springs and fulcrum pin
• Corrosion and grit resistant
• Bearing: G1/2" (13mm) Male, Brass
• Nozzle Size: 3.97mm (5/32)
• Trajectory Angle: 25°
• Flow Rate: 3.1-5.0 gpm (0.7-1.14 m3 /h)
• Radius: 36-44.6 ft. (11-13.6 meters)
Pressure Radius
20psi 36ft 11m
40psi 39.37ft 12m
60psi 42.65ft 13m
80psi 44.6ft 13.6m

Max Coverage: 5274 ft² (m²)
• Operating Range: 20-60 psi (1.4-4.2 bar)
Make sure youre using a water source with a pressure of at least 20 psi.

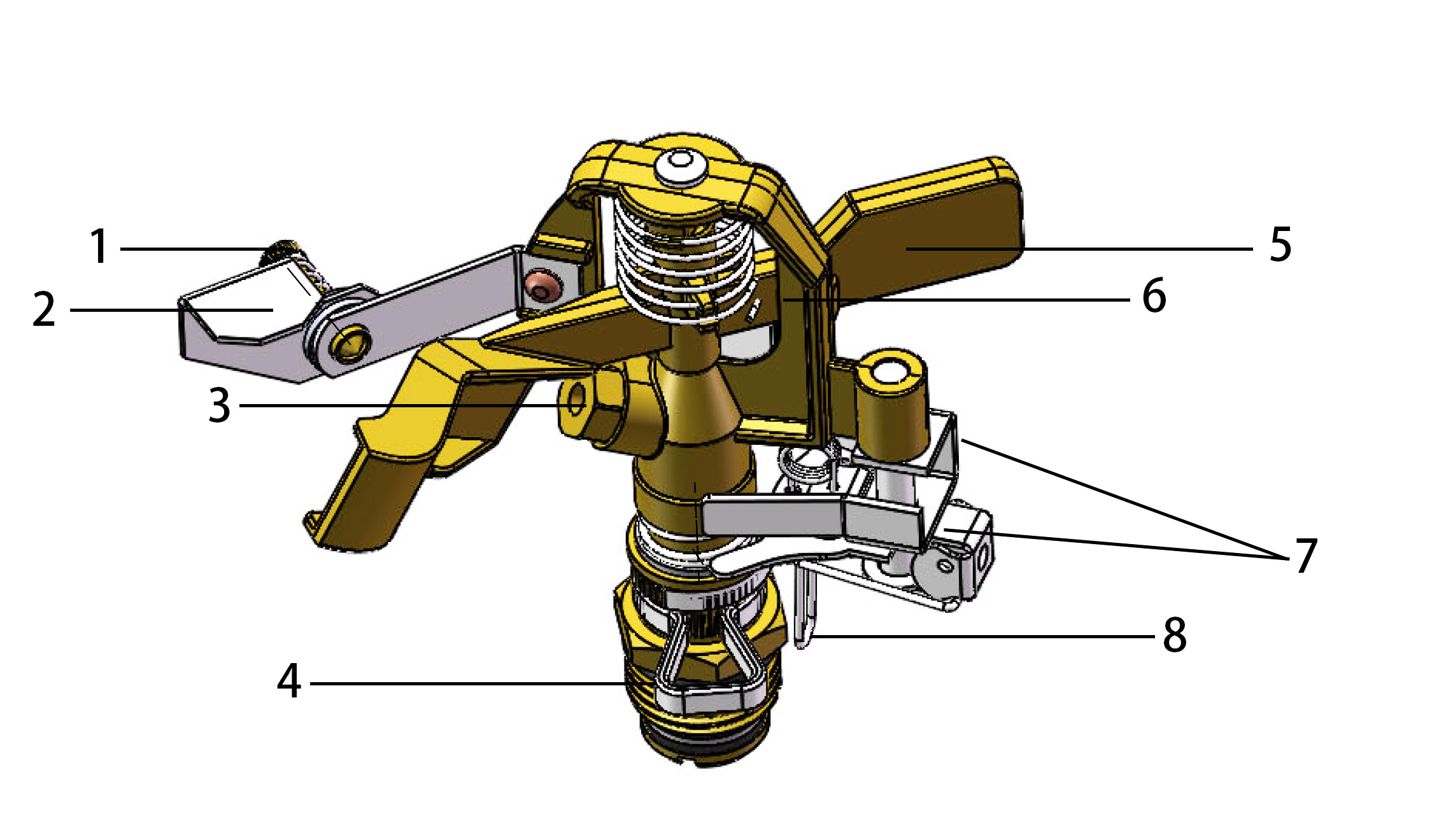

Part No. Description Part No. Description
1 Diffuser Pin 5 Spray Arm
2 Deflector Shield 6 Arm Spring
3 Nozzle 7 Trip Mechanism
4 Friction Collar 8 Trip Pin
